EGG
INCUBATORS

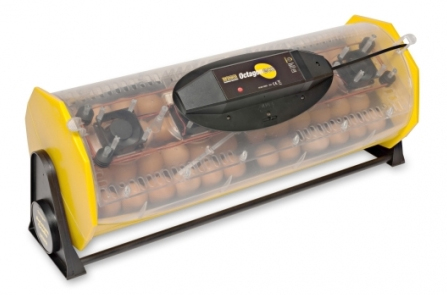

| Octagon® 40 Eco egg incubator |
|
|
Economic to buy – simple and effective to use
- 48 hen egg (or equivalent) capacity. Adjustable for eggs from
quail to goose size without extras
- Easy to clean
- 4 whisper quiet fans and computer modelled temperature
distribution for optimum hatch rates
- Automatic turning
- Double skinned insulated base for low energy consumption
and even temperature
The Octagon® 40 Eco combine the high quality cabinet and airflow systems of the Octagon® range with a proven and reliable electronic temperature control to provide reliable hatching results with minimum of fuss.
Temperature is measured using the purpose made liquid in glass thermometer that is supplied with the incubator and the incubation temperature adjusted to suit the eggs being incubated as listed in the user instructions. A flashing indicator shows that the incubation temperature is being controlled steadily. The Octagon® 40 is supplied complete with autoturn cradle.
Brinsea’s Octagon® 20 and 40 incubators have been popular with bird breeders for decades and the latest models provide a combination of performance and value whichever model you choose.
Cabinet. The high quality incubator cabinets are entirely injection moulded from high grade ABS which makes them
durable and easy to clean. The base is double skinned and foam filled to reduce heat loss meaning lower electricity
consumption and better temperature distribution. The incubator tops are clear allowing good visibility of the eggs
and chicks inside.
Humidity and ventilation. Air is circulated by long life computer fans which, coupled with the unique grilles with
optimised air diffusers, means extremely even air temperature throughout the egg chamber. Fresh air is controlled with a vent
slider and humidity is provided by water in reservoirs in the base (unless the EX pump is used – Advance models only).
Egg Handling. Egg turning is achieved by rocking the whole cabinet from side to side either by hand (hence the Octagon® shape) or with the automatic turning cradle which moves the incubator through 90° approximately once each hour. External egg turning keeps the incubator interior free from motors and mechanisms which makes cleaning easier. Autoturn cradles are supplied as standard with all Octagon® 40 models. To accommodate eggs of different sizes the two removable egg trays are supplied with dividers which the user can position to suit their eggs and maximize the number that can be held. Eggs from as small as finches to as large as geese can be incubated. The Octagon® 40s hold up to 48 hens eggs or equivalent.
Specifications
| |
Dimensions |
Weight |
Power Consumption |
Power Supply |
| Incubator only |
65 x 26 x 26cm high |
4.20Kg |
max 90W, typ 40W @ 230V 50Hz |
110-120v or 220-240v as requested |
| Incubator plus cradle |
73 x 26 x 30cm high |
4.80Kg |
max 90W, typ 40W @ 230V 50Hz
Cradle is 4W |
110-120v or 220-240v as requested |
|
