Performance
and ease of use
Four
small fans blowing air in laminar flow around
the egg chamber provide much better temperature
distribution than a single, large fan. This
approach, coupled with the high levels of
insulation mean that temperature is extremely
evenly distributed throughout the egg chamber,
ensuring good hatch rates, time after time.

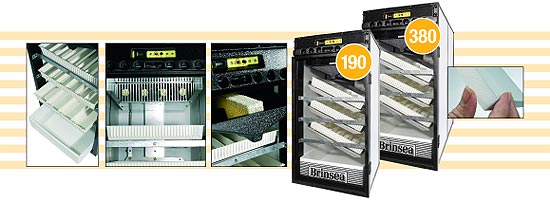

Eggs
are held in removable trays and the user
can configure their incubator to their needs
by the choice of trays available. Universal
trays are adjustable for egg size from quail
through to goose eggs and are supplied as
standard. For maximum capacity of a certain
species, egg inserts are available separately
for hens, pheasant and quail.
Eggs are initially set in three levels and
are then moved to a large, removable hatching
tray at the base of the chamber for the
final stages of incubation and hatching.
An optional wire hatching tray cover is
available to prevent the chicks escaping
from the tray.
The
convenient control panel allows the user
to adjust the temperature, humidity/ventilation
and turning easily. Temperature is shown
on a calibrated digital display on the front
of the panel and can be finely adjusted
with the 20 turn spindle.The fully automatic
turning can be switched off from the control
panel while the eggs are being accessed
or the incubator cleaned.
Construction
– flat-pack, durable, energy efficient
The
Ova-Easy incubators have a fully protected
steel chassis which is rigid and rust resistant
with laminated high density polystyrene
sides providing good thermal insulation
and a smooth, easy to clean surface. The
transparent, double glazed door provides
thermal insulation plus the convenience
of total visibility of eggs and hatching
chicks.
The incubator is supplied as a part assembly
with the cabinet frame, wall panels and
egg turning parts to be assembled by the
user. No special technical knowledge or
tools are required and all electrical parts
are all pre-assembled leaving the user to
construct the cabinet following the clear
diagrams.
Technical
Specification
| Construction: |
Rust
resistant steel chassis with polystyrene
laminate panels |
Weight: |
380
- 27Kg (60lbs); 190
- 20Kg (44lbs) |
Power Consumption: |
200 Watts max, 100 Watts typical average. |
Dimensions: |
380
- 820 x 420 x 800mm (32.5” x 16.5”
x 31.5”) HxWxD
190
- 820 x 420 x 480mm (32.5” x 16.5”
x 19”) HxWxD |
Electrical supply: |
230V 50Hz or 115V
60Hz as specified. |
In
order that we continue our policy of innovation
and improvement we reserve the right to
alter the specification without notice
Maximum
setting egg capacities (approx.)
| |
Eggs
per tray |
Number
of trays/eggs
380 |
Number
of trays/eggs
190 |
| Universal
trays |
|
|
|
| Quail |
100 |
6
/ 600 |
3
/ 300 |
| Partridge |
56 |
6
/ 336 |
3
/ 168 |
| Pheasant |
47 |
6
/ 282 |
3
/ 141 |
| Hen |
36 |
6
/ 216 |
3
/ 108 |
| Duck |
23 |
6
/ 138 |
3
/ 69 |
| Goose |
13 |
6
/ 78 |
3
/ 39 |
| |
|
|
|
| Hatching
tray |
|
|
|
| Quail |
125 |
2
/ 250 |
1
/ 125 |
| Partridge |
68 |
2
/ 136 |
1
/ 68 |
| Pheasant |
56 |
2
/ 112 |
1
/ 56 |
| Hens |
48 |
2
/ 96 |
1
/ 48 |
| Turkey/duck |
35 |
2
/ 70 |
1
/ 35 |
| Goose |
18 |
2
/ 36 |
1
/ 18 |
|
