All models in the range are fitted with Brinsea’s proven Advance digital control
system which is both accurate and easy
to use. Incubation temperature (in °C or °F) and humidity are continuously
displayed along with temperature alarm and egg turning status.
The Series II models include room temperature alarms to warn if the environmental temperature goes outside the optimum range and a new single button press to automatically level the shelves for tray access.

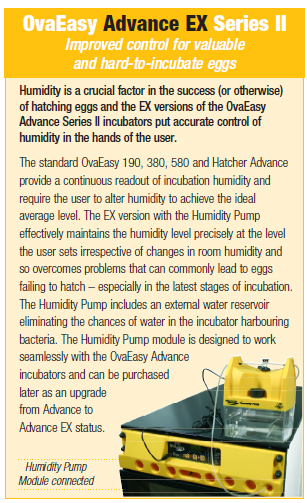

All models can be upgraded to EX specification to include fully automatic control of humidity with the addition of the EX water pump system. |
 |
Performance and ease of use

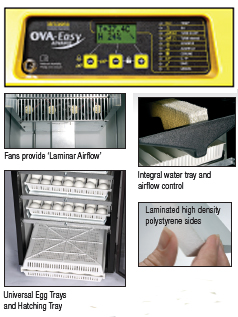

Multiple small fans blowing air in laminar flow around the egg chamber provide much better temperature distribution than a single, large fan. This approach, coupled with the high levels of insulation mean that temperature is extremely evenly distributed throughout the egg chamber, ensuring good hatch rates, time after time.
The convenient control panel allows the user to adjust the temperature, Humidity (EX versions only) humidity/ventilation and turning easily. Temperature and humidity levels are shown on a calibrated digital display on the front of the panel. The fully automatic turning can be switched off from the control panel while the eggs are being accessed or the incubator cleaned.
Construction – durable and energy efficient
The OvaEasy models have fully protected steel chassis which are rigid and rust resistant with laminated high density polystyrene sides providing good thermal insulation and smooth, easy to clean surfaces. The transparent, double glazed door provides thermal insulation plus the convenience of total visibility of eggs and hatched chicks.
Egg Handling
Eggs are held in removable trays. As standard the incubators are supplied with universal egg trays with adjustable dividers allowing the user to efficiently fit a wide range of egg sizes from quail to goose, although at a cost of maximum capacity. For maximum capacity optional species specific egg trays are required (see capacity table).
|
|
190 and 380: Eggs are initially set in three levels and are then moved to a large, removable hatching tray at the base of the chamber for the final stages of incubation and hatching.
580: Eggs are initially set in six levels and then moved to an OvaEasy Hatcher for the final stages of incubation and hatching. Hatching trays come complete with removable covers to contain the chicks. |
OVA-Easy

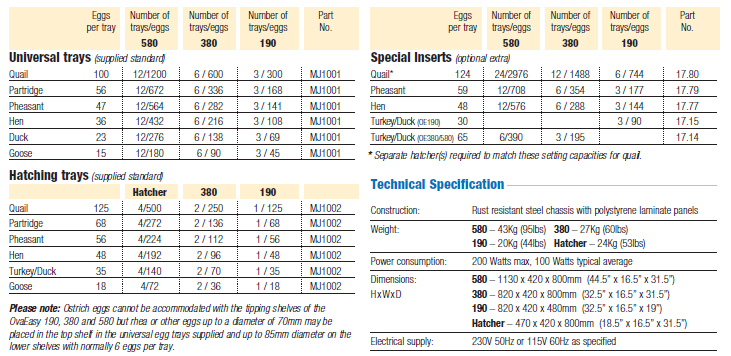

190/380/580 Advance - Specifications |
Maximum setting egg capacities (approx.)
| Construction: |
Rust
resistant steel chassis with polystyrene laminate
panels |
Weight: |
580 – 43Kg (95lbs), 380 - 27Kg (60lbs); 190 - 20Kg (44lbs),
Hatcher – 24Kg (53lbs) |
Power Consumption: |
200 Watts max, 100 Watts typical average. |
Dimensions: |
580 - 1130 x 420 x 800mm (44.5” x 16.5” x 31.5”) HxWxD
380 - 820 x 420 x 800mm (32.5” x 16.5”
x 31.5”) HxWxD
190 - 820 x 420 x 480mm (32.5” x 16.5”
x 19”) HxWxD
Hatcher - 470 x 420 x 800mm (18.5” x 16.5” x 31.5”) HxWxD |
Electrical supply: |
230V 50Hz or 115V 60Hz as specified. |
In
order that we continue our policy of innovation
and improvement we reserve the right to alter
the specification without notice. |
|
|
|
|
